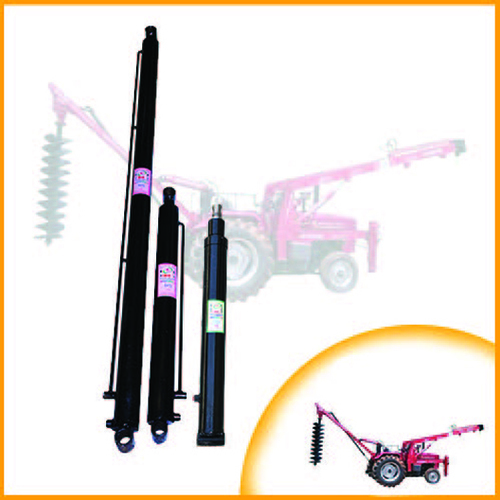

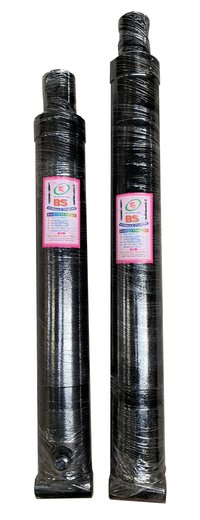

Tractor Loader Hydraulic Cylinder

2000-20000 INR/Piece

Get a Price/Quote

Product Details:

Material Iron
Power Mode Other
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Tractor Loader Hydraulic Cylinder Price And Quantity

Minimum Order Quantity 10 Piece
Price 2000-20000 INR/Piece

Tractor Loader Hydraulic Cylinder Product Specifications

Power Mode Other
Material Iron

Tractor Loader Hydraulic Cylinder Trade Information

Supply Ability 500 Piece Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

We are a prominent exporter, supplier and manufacturer of Tractor Loader Hydraulic Cylinder to our widely spread clients. It is fabricated using high quality raw material and progressive technology and machinery at our unit under the professional guidance and supervision. We conduct various quality inspections to make sure that our Tractor Loader Hydraulic Cylinder stands up to the set industrial standards. It is widely appreciated for high performance, durability, reliability and a long service life. We offer it at highly affordable prices in the market.

Technical Specifications

Finishing	Paint Coated
Brand	BS
Dimension/Size	20-100 inch
Ram Size	25-60 mm
Maximum Stroke	550 mm
Material	MS

Specification

(Bucket Cylinder)

Close Center	Open Center	Stroke Length	Rod Dia.	Body Tube Dia.	Pin Hole	Classication
31 in	53.5 in	22.5 in	32 mm	50 x60 mm	28 mm	Double Acting
28 in	47.5 in	19.5 in	32 mm	50 x60 mm	28 mm	Double Acting
32 in	56 in	24 in	40 mm	63 x73 mm	30 mm	Double Acting
34 in	60 in	26 in	40 mm	63 x73 mm	32 mm	Double Acting
25 in	41 in	16 in	35 mm	55 x65 mm	30 mm	Double Acting
30 in	51 in	21 in	35 mm	55 x65 mm	32 mm	Double Acting

(Lift Cylinder)

Close Center	Open Center	Stroke Length	Rod Dia.	Body Tube Dia.	Pin Hole	Classicatio
32 in	55.5 in	23.5 in	60 mm	75 x 90 mm	28 mm	Single Act. (Hi. Sp.)
27.5 in	46 in	18.5 in	60 mm	75 x 90 mm	28 mm	Single Act. (Hi. Sp.)
42 in	74.5 in	32.5 in	50 mm	80 x 90 mm	35 mm	Double Acting
35 in	60.5 in	25.5 in	50(45) mm	80 x 90 mm	35 mm	Double Acting
40 in	71 in	31 in	45(40) mm	70 x 80 mm	32 mm	Double Acting
35 in	60.50 in	25.5 in	45(40) mm	70 x 80 mm	32 mm	Double Acting
